Product description

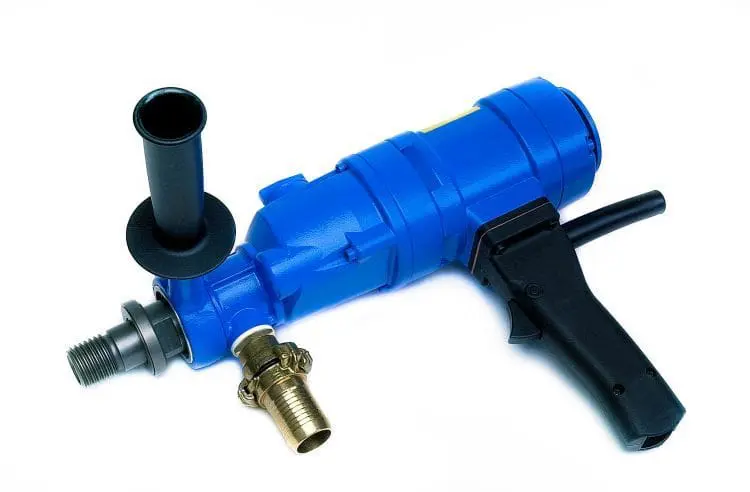

The DK17 diamond core drill is the successor to the DK13 — the same reliable machine, now with increased power.
This is a versatile wet and dry diamond drilling machine designed for drilling in reinforced concrete (wet) and masonry or stone (dry), without the need to change accessories or configurations.
Thanks to the Gardena connector, the drill can be connected to almost any water tank. This ensures dust-free drilling when working wet. Simply connect the ball valve or vacuum coupling and the machine is ready for operation. A specially developed sealing system with protective rings allows both wet and dry systems to be integrated into a single machine.
The insulated construction with additional protective conductor ensures safety against accidental contact with live cables while drilling.
The machine is equipped with a 3-speed gearbox featuring special oil bath lubrication to prevent overload and extend service life.
Technical data – DK17
-
Power output: 2000 W
-
Overall length: 420 mm
-
Weight: 6.3 kg
-
Mounting collar: 60 mm
-
Speed range: 540 / 1200 / 2520 rpm
-
Drilling capacity in brickwork: up to 160 mm
-
Drilling capacity in concrete: up to 140 mm
-
Connection: 1/2″ BSP female thread
Specifications
-
Voltage: 230 V
-
Weight: 6.3 kg
-
Speed: 540 / 1200 / 2520 rpm
-
Drilling diameter: 100–160 mm
-
Power: 2000 W
-
Spindle connection: 1/2″
-
Length: 420 mm
-
Applications: Stone, Concrete
-
Suitable for: Wet and dry use
Included in delivery
-
Adapter connection: 1/2″ female thread
-
Connection: 1 1/4″ male thread
-
Water tap with Gardena connector
-
Carrying case
-
Separate side handle
-
Two machine spanners
-
Supplied with CE plug or PRCD safety switch
