Product description

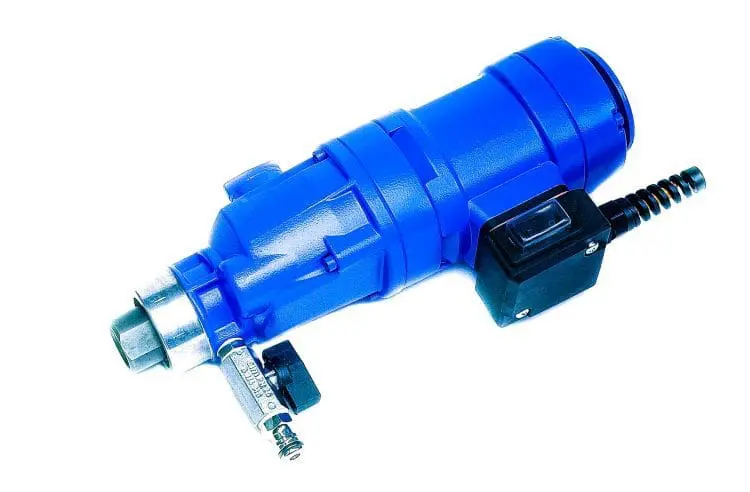

This professional diamond core drill features a robust full aluminium housing and is designed for drilling in concrete and stone-based materials. The machine is supplied with 24 mm and 32 mm installation spanners.
Key features
-
Three-speed gearbox with special oil bath lubrication to prevent overload
-
Diamond core drill designed for use on a drill stand
-
Equipped with a slip clutch to protect the user, machine, and core bits
-
Levelling aid for precise positioning
-
Durable metal housing
-
Electrical safety compliant with all EC standards
-
Motor protection and soft start via Intellitronic system for smooth start-up and reduced inrush current
Technical specifications
-
Power output: 2000 W
-
Voltage: 230 V
-
Current: 7.5 A
-
Speed range: 580 / 1400 / 2900 rpm
-
Drilling capacity: 15–160 mm
-
Height: 350 mm
-
Connection: 1/2″ BSP
-
Weight: 5.9 kg
-
Mounting collar: Ø60 mm
-
Spirit level: horizontal & vertical
-
Suitable for: Dry and wet use
-
Supplied with CE plug or PRCD safety switch
