Product description

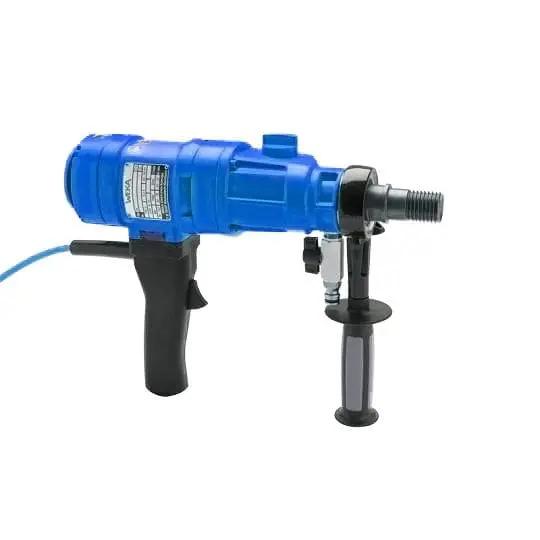

WEKA DK 1603 Handheld Diamond Core Drill – 2000 W, Dual Connection System
This diamond core drill delivers 2000 W of power and is suitable for drilling with diamond core bits up to 160 mm in diameter. The machine can be used both handheld and mounted on a drill stand.
The key difference between the DK16 and DK1603 models lies in the output spindle. The DK16 features a 1/2″ shaft with internal thread, meaning only core bits with 1/2″ external thread can be mounted directly. The DK1603 is equipped with a 1 1/4″ external thread combined with an internal 1/2″ thread, allowing direct use of both 1/2″ external thread bits and 1 1/4″ internal thread core bits — providing maximum flexibility on site.
Key features
-
Three-speed gearbox with special oil bath lubrication to prevent overload
-
Built-in safety clutch to protect the user, machine and drill bits
-
Levelling aid for accurate drilling
-
Robust metal housing
-
Electrical safety compliant with all EC standards
Technical specifications
-
Voltage: 230 V
-
Weight: 5.9 kg
-
Current: 7.5 A
-
Speed range: 540 / 1200 / 2520 rpm
-
Drilling range: 20–160 mm
-
Power output: 2000 W
-
Connection: 1/2″ BSP and 1 1/4″
-
Length: 350 mm
-
Applications: Stone, Concrete
-
Suitable for: Dry and wet use
Included in delivery
-
Carrying case
-
2 machine spanners (24 mm and 32 mm)
-
Separate handle
-
CE plug or PRCD safety switch
